Our Products
Wirth Gas Equipment provides solutions for various industries including food processing and environmental sectors
Air Heating Burners
Product Applications

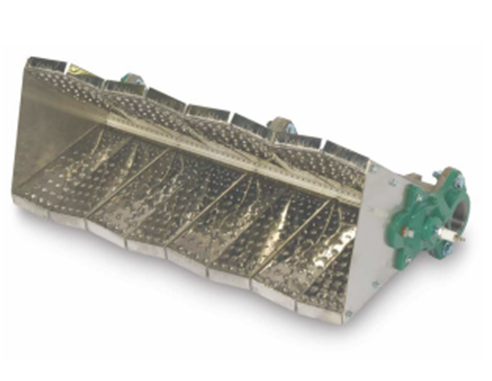

ECLIPSE AH-MA BURNERS
Product Applications
Designed for trouble-free make-up or process air heating.
Eclipse AH-MA burners are raw gas, direct fired burners that produce a uniform, odorless, and smokeless flame ideal for heating fresh air in make-up and process air heating applications. The AHMA design provides stable operation over a wide range of velocities, inputs and fuels.
AH-MA easily passes all global standards for indoor air quality through a wide operational range. It complies with ANSI Z21.20 design standards and is used in systems which meet ANSI Z83.4 / CGA 3.7 emissions standards for NOx and CO.
The aluminum burner body creates a lightweight, corrosion resistant burner. Cast iron and corrosion resistant cast iron bodies are also available. Divergent air wings are made of stainless steel. The burner bodies supply fuel to the center of the air wings to control the air and fuel mixture inside the burner and to optimize emissions and efficiency.
Low pressure models, requiring only a 6.0” w.c. êP natural gas at 800,000 Btu/hr/LF, are also available.
Product Applications
Eclipse Airheat V1
Product Applications
Eclipse AirHeat v1 line type burners are ideal for generating volumes of clean, hot air. Applications include ovens, dryers, fume incinerators, and similar industrial equipment. Some models feature an integral combustion air blower mounted on the burner’s steel case. By supplying the correct air volume and pressure to the burner, the blower allows stable operation over a wide range of duct velocities without installing a profile plate around the burner. The burner can also be paired with a remote blower for use in recirculating air applications.
- Wide variety of configurations and packages available depending on application requirements
- Up to 40:1 Thermal turndown
- Operates on any commercially available gas-natural gas or propane; butane versions available
- As little as 10% excess air at high fire; and depending on the installation configuration, no oxygen is required from the process air stream.
- Burner mounting arrangements include duct mounting, or side-plate mounting for simplified installation.
- Robust, reliable operation based on vast history and experience.
Product Applications

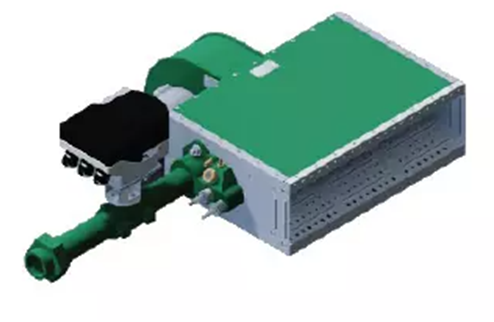

Eclipse Airheat V2
Product Applications
Applications
Eclipse AirHeat v2 line type burners are ideal for generating volumes of clean, hot air. Applications include ovens, dryers, fume incinerators, and similar industrial equipment. All models feature an integral combustion air blower mounted on the burner’s steel case. By supplying the correct air volume and pressure to the burner, the blower allows stable operation over a wide range of duct velocities without installing a profile plate around the burner. The burner can also be ordered without a blower for use in recirculating air applications
FEATURES & BENEFITS
- Low emission air heating burner
- Does not require low-fire bypass air, eliminating the need for piping and check valve
- Simplified set-up with pressure taps for gas, air and chamber
- Operates on any commercially available gas-natural gas, propane, butane and propane/ butane mixture
- Aluminum castings eliminate need for special corrosion-resistant manifolds
- Burner mounting arrangements include duct mounting, slot firing and sealed flange mounting
- Tee configurations and multiple staged rows
Product Applications

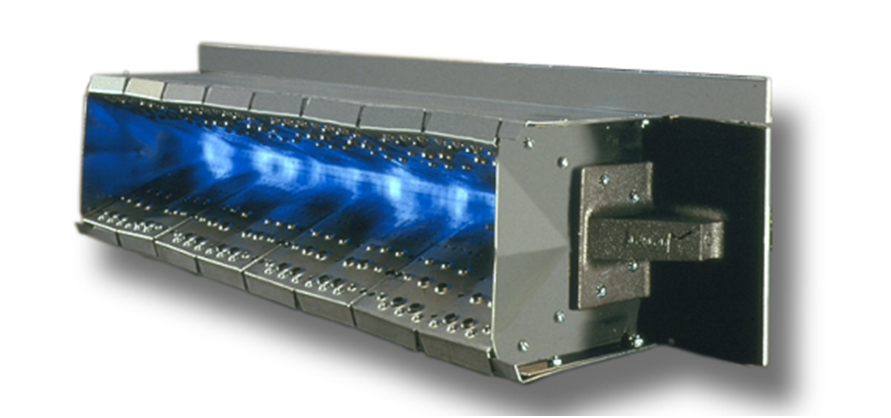

APX
Nozzle-mix line burner
Product Applications
- Nozzle-mixing line burner for use with low pressure natural gas, propane and butane
- Eliminates leakage with its single-piece, aluminum extrusion body design
- Cooler oven walls due to deeper penetration inside the oven (wall-mounted applications)
- Independent of variable process air-flows (in-duct applications)
- Corrosion resistant main gas/air body and durable stainless steel mixing plates
- Up to 40:1 turndown
- Up to 1.36 MBtu/h per foot
- Packaged units up to 15 ft in length
Product Applications

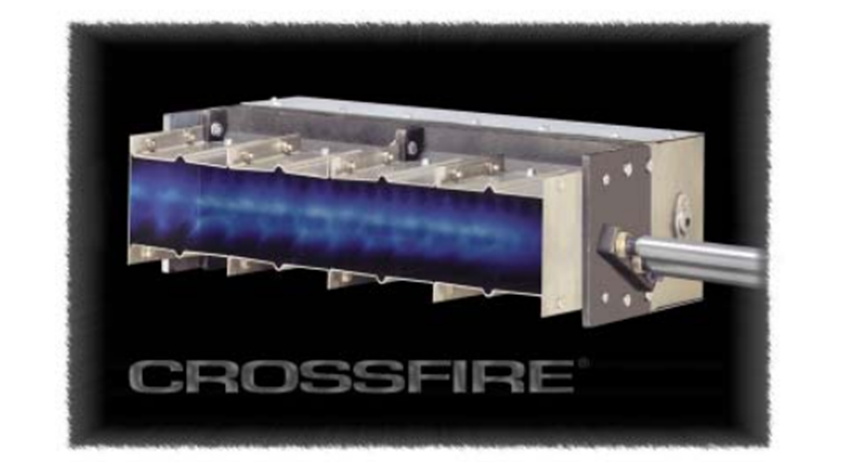

Maxon CROSSFIRE® Line Burner
Product Applications
- Operational flexibility
- Extremely low emissions – NOx levels of 25 ppm and CO levels of 250 ppm at 3% O2 are possible. Contact your Maxon sales representative about your specific application.
- Temperature uniformity to enhance product quality
- Up to 25:1 turndown for process flexibility
- High firing capacity – up to 2,500,000 Btu/hr/ft (732 kW/ft)
- Nozzle-mixing line burner for use with low pressure natural gas firing
- Also available in stainless steel housings and nickel-plated body versions
Product Applications
Eclipse RatioMatic Burners
Easy to install, operate and maintain…worldwide.
- Capacities from 135 to 8000 kW (500,000 to 30,000,000 Btu/hr)
- Standard nozzles burn natural gas, propane or butane
- Right or left hand piping. BSP or NPT pipe threads
- Can be disassembled from rear without entering the oven or duct
- Direct spark ignition
- Quick-change spark and flame rods; optional inexpensive quick-change air filter
- Can be ordered stripped or completely packaged, wired and piped, ready to set up and start up
- Choice of alloy tube or high-temperature combustion chamber (SiC tube or refractory block)
- NFPA or CE type valve trains
- Models less blower to connect multiple burners to a single manifold; or for high pressure blower/high back-pressure applications
Product Applications
- High performance burners for process air heating
- Ratio regulator automatically compensates for changes in operating conditions such as dirty air filters which can upset the air/gas ratio in competitive linked valve systems
- Turndown range of up to 90:1, depending on burner size and chamber conditions
- Direct-drive air butterfly eliminates linkages which can slip or jam during operation
- Fast-mixing nozzle provides clean, stable flame at all firing rates and releases heat into the chamber, not the oven wall
- Ideal for emission-sensitive processes due to low NOx, CO and aldehydes
Applications
RatioMatic is a packaged air heating burner that features simple operation and robust, reliable performance. The ratio regulator and direct drive air butterfly simplify start-up and adjustment. The fast mixing nozzle provides a clean, stable flame at all firing rates. RatioMatic delivers high fuel efficiency and low NOx, CO and aldehyde outputs. The RatioMatic design takes the guesswork out of start-up and adjustment.
Product Applications

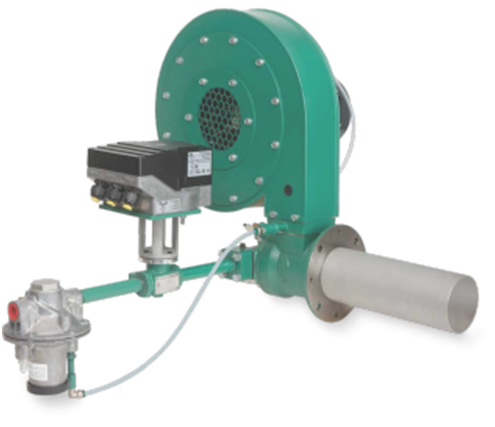

ECLIPSE THERMAIR BURNERS
For Process Air Heating and General Oven Applications
Product Applications
Fixed air performance provides easy setup and adjustment
The Honeywell Eclipse ThermAir burner is a nozzle-mixing burner with packaged air blower that’s designed to fire with fixed combustion air over a wide gas turndown range. Fixed air operation plus integral air and gas orifices make the ThermAir one of the simplest burners ever to quickly setup and adjust.
ThermAir burners are ideal on heaters, textile ovens and in situations where the fuel is highly variable (800 Btu/cf to 3200 Btu/cf). Plus, they’re perfect for ovens needing additional air to carry moisture away from the product being heated.
Check out these quality construction and performance features:
- Easy to install, operate and maintain. Right or left hand piping; readily adapts to your present system. Burner can be disassembled from the rear.
- Global design: metric/English gas interface.
- 30:1 turndown with UV scanner or Flame Rod1
- Multi-fuel capability (natural gas, propane, butane) without changing nozzle.
- Direct spark ignition.
- Low NOx emissions: 60 ppm at high fire.
Like all Eclipse products, you can be confident that ThermAir burners are unsurpassed for quality, safety, reliability and efficiency.
1 Flame Rod not available on all models.
Product Applications

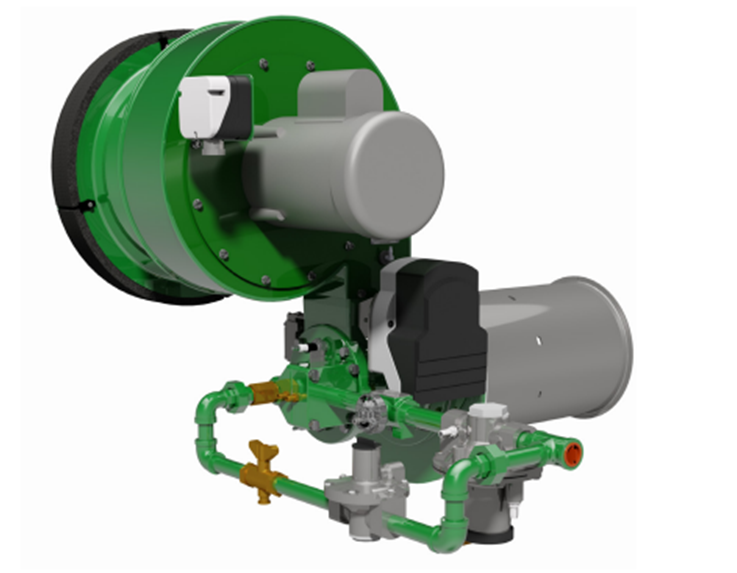

ECLIPSE WINNOX BURNERS
Low Emission Air Heating Burners
Product Applications
Efficient and Simple, Winnox Burners Meet Tomorrow’s Emissions Mandates Today
Designed to comply with the global emissions mandates of the 21st century, Winnox burners are also simple to set up and operate.
Ideal for air heating and oven applications, Winnox burners incorporate direct-spark ignition and a ratio regulator to fire efficiently over a wide gas turndown range at a controlled ratio.
- Patented nozzle design allows for intense mixing of air and fuel resulting in extremely low emissions.
- Ultra-low Nox, less than 20ppm in most applications.
- And…low CO. Virtually no CO emissions during normal operation.
- Short flame is completely contained within the firing tube due to intense swirl generated by the nozzle.
Ready for the world
Winnox burners combine advanced engineering with installation and operational features that are truly world class.
- Multi-fuel capability (natural gas, propane, butane).
- Simple, accurate burner control due to integral butterfly valve and ratio-regulator design.
- Packaged convenience. Winnox burners are provided with blowers for ease of installation and at 50 Hz. or 60 Hz. for global application. They are also available with alloy tubes or a refractory combustor to meet the demands of customer requirements.
- Modular design means a variety of options and configurations are available, including NPT or BSP inlet pipe threads.
Consider the many user-preferred features of Winnox before investing in your next air heating burner.
Product Applications

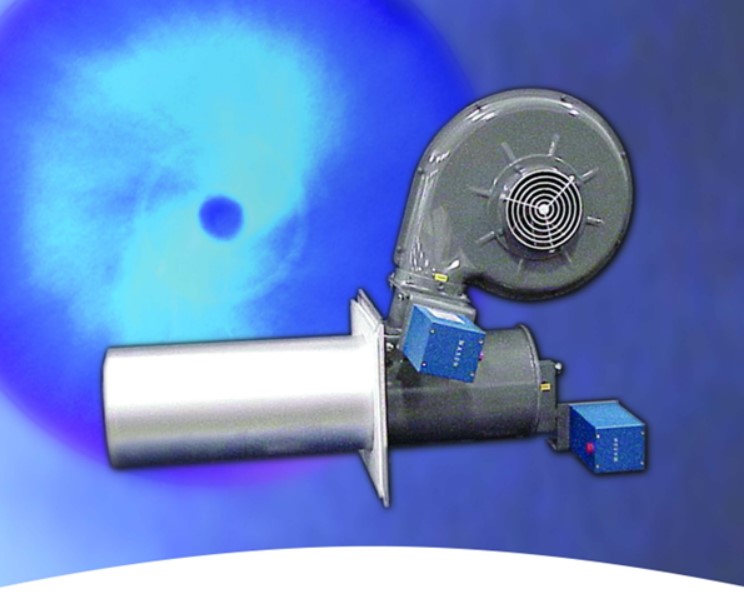

MAXON M-PAKT
ULTRA LOW NOx BURNERS
Product Applications
PRODUCT DESCRIPTION
Typical MAXON quality and reliability is found in the MPAKT® Ultra Low NOx Burners, which provide the world’s lowest levels of NOx and CO. NOx is typically single digits in most applications. The M-PAKT® low NOx burner is suitable for industrial air heating for ovens and dryers for paint finishing, paper making, food baking, textile production, grain drying, and make-up air heating. MPAKT® burners substantially reduce emissions in oxidizers, incinerators, heat exchangers and process heaters.
FEATURES AND BENEFITS
- Produces extremely low emissions of NOx and CO
- Burns natural gas or propane
- Flame contained almost entirely inside the discharge sleeve
- Compact packaged design with a variety of control methods
- Durable steel outer construction with stainless steel internals
TYPICAL EMISSIONS
The M-PAKT® Ultra Low Emissions Burner produces NOx and CO emissions up to 95% less than conventional burners. Without exotic alloys or fragile ceramics, the burner reduces NOx with a patented, advanced flame stabilization. The M-PAKT® burner’s advanced anchoring of the flame reduces prompt NOx while thermal NOx is suppressed with an extremely uniform mixture.
In application, the M-PAKT® Ultra Low Emissions Burner produces single digit NOx corrected to 3% oxygen. In most installations, CO production is limited to extremely low levels. Exact emissions performance may vary in your application. Contact MAXON for information on installation specific estimates or guarantees. No guarantee of emissions is intended or implied without specific written guarantee from MAXON.
Factors that can affect emissions:
- Process air direction, temperature and velocity
- Process stream constituents, especially nitrogen bearing compounds
- Combustion air quality, relative humidity and filtration
- Burner location and installation
- Fuel quality and heating value
• Emissions instrument calibration and testing protocol
Product Applications

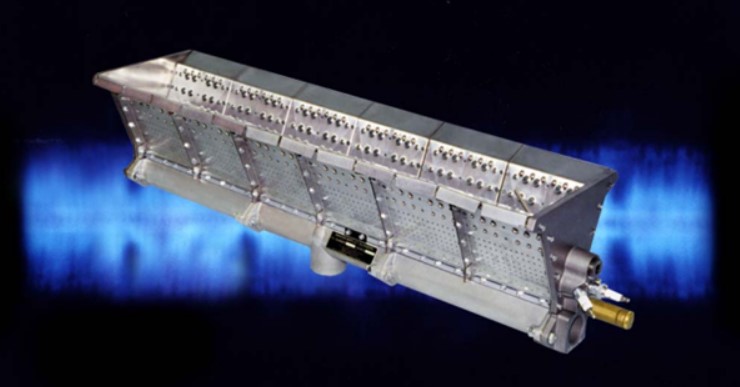

Series NP-LE AIRFLO
IN-DUCT FIRING LINE BURNER
Product Applications
- Designed for direct-fired make-up air and process applications
- Improved emissions performance over MAXON’s standard “NP” AIRFLO® Burner, with significantly lower levels of CO and NO2
- High capacity – up to 1,000,000 Btu/h/ft
- Short flame length
- Available in low pressure version and corrosion-resistant materials
Product Applications

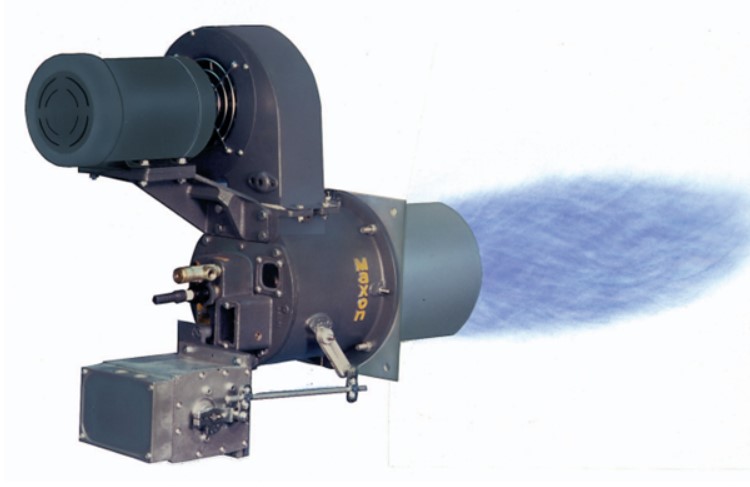

OVENPAK® 400 Gas Burners
Product Applications
Model 415 OVENPAK® Burner with connecting base and linkage assembly to adapt customer’s automatic electric control motor
- Burns any clean fuel gas
- Fires into passing air streams
- Requires only low pressure gas
- Provides clean combustion with low NOx levels
- Compact burner design provides quick and easy installation
- Simple field adjustment and maintenance
Model “400” OVENPAK® Burner applications have included:
Air heating in ovens and dryers, paint finishing lines, paper and textile machines, food baking ovens, coffee roasters, grain dryers, and fume incinerators. Manufactured under U.S. patent #3,574,508; Canadian and European patents granted and pending.
Product Applications
OVENPAK® LE
low emissions, high performance gas burners
Product Applications
- Burns any clean fuel gas
- Operates on low gas supply pressures
- Provides clean combustion with low NOx and CO levels
- Compact burner design provides quick and easy installation
- Balanced pressure design for easy commissioning and adjustment
- Visible ignition action speeds commissioning and maintenance
- High turndown for exceptional process control
